CS Universal Spine Extension™

The CS Universal Spine Extension™ is a spine extension designed to fit a wide range of standard operating tables, transforming them into a spine table for prone positioning. It provides stable patient positioning and imaging capabilities comparable to a specialist dual-rail spine table, supporting effective surgical access during spine surgery.

Improved efficiency- simply remove the extension to return the table for standard use
360 degree C-Arm/0-Arm access
Significantly more cost-effective in comparison to purchasing a full spine table
Powered leg for ease of adjustment
Light weight – one person required to set up
275kg/600lbs. patient weight capacity
Fits operating tables with rail widths from 510mm/20’ to 709/27.9’mm

More Information View Video

Enquire about this product Find Distributor

Product Codes

Image	Product Code	Product Name

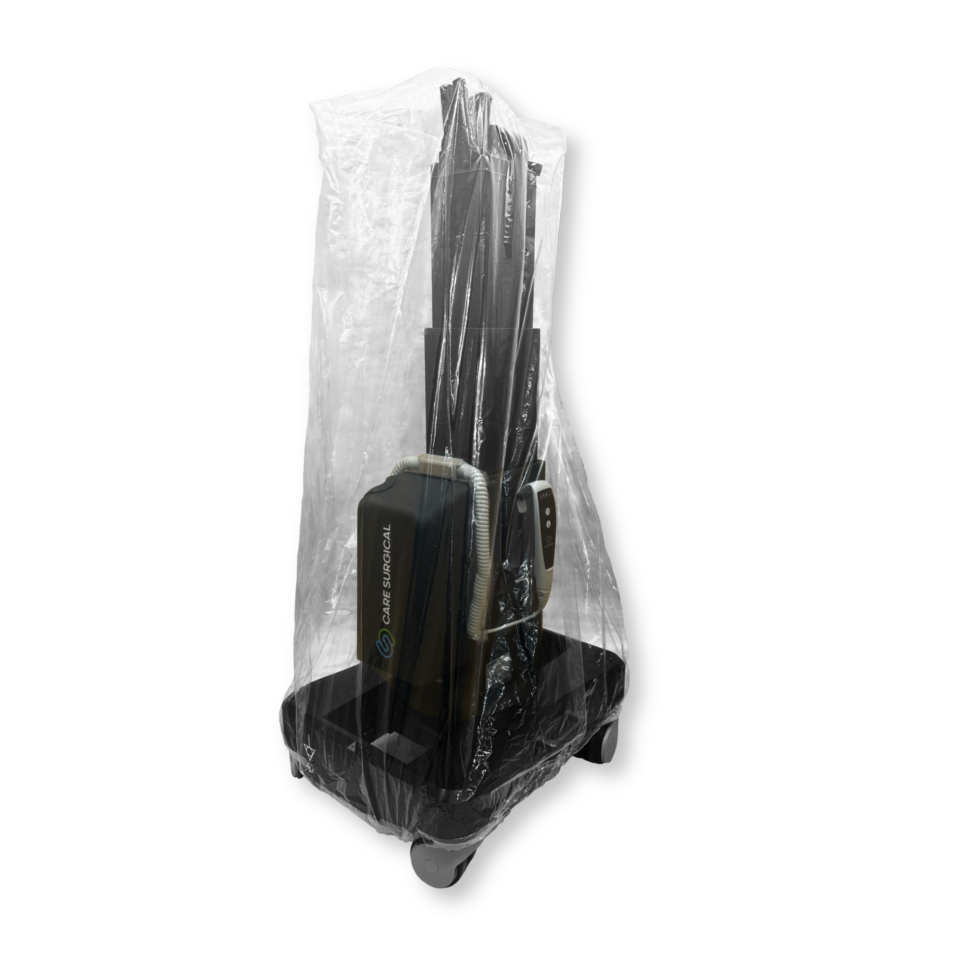

	CSM2958	CS Universal Spine Extension™ Set - EU
	CSM3033	CS Universal Spine Extension™ Set - Asia
	CSM3031	CS Universal Spine Extension™ Set - US
	CSM3035	CS Universal Spine Extension™ Set - AUS
	CSM3037	CS Universal Spine Extension™ Set - UK
	CSM3104	CS Universal Spine Extension™ Set - Japan

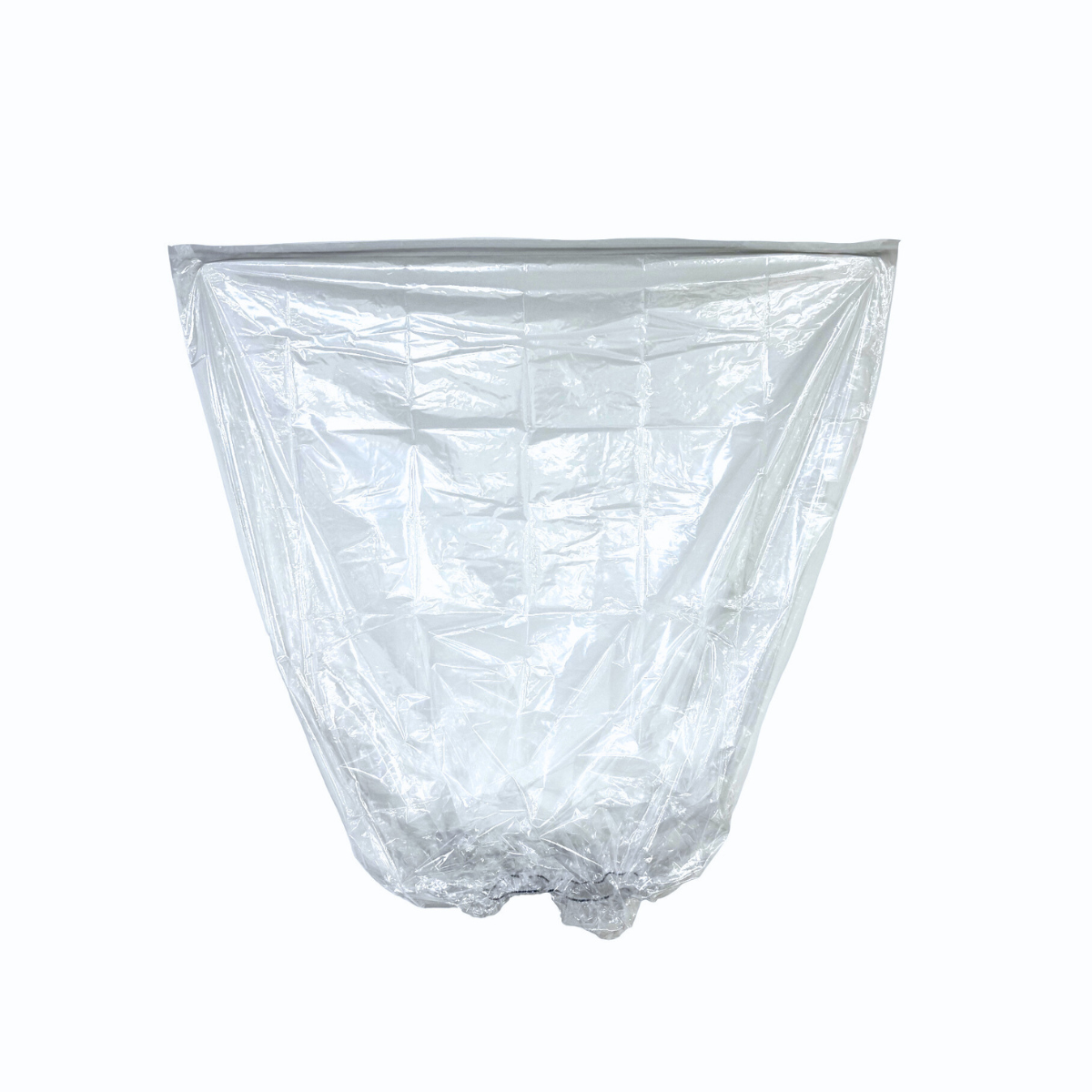

	CSM3029	CS Universal Spine Extension™ – Powered Leg Cover

Specification

Title	Details
CS Universal Spine Extension - Table Adaptor EU	Fits rail size - 10mm/0.39' x 25mm/0.98' (WxH)
CS Universal Spine Extension - Table Adaptor US	Fits rail size 9.525mm/0.375' x 28.575mm/1.125' (WxH)
CS Universal Spine Extension - Table Adaptor Asia	Fits rail size 10mm/0.39' x 32/23mm/1.25/0.90' (WxH)
CS Universal Spine Extension - Table Adaptor AUS	Fits rail size 6.35mm/0.25' x 38.1mm/1.5' (WxH)
CS Universal Spine Extension - Table Adaptor UK	Fits rail size 6.35mm/0.25' x 31.75mm/1.25' (WxH)
CS Universal Spine Extension - Table Adaptor Japan	Fits rail size 9mm/0.35' x 32mm/1.25' (WxH)

Data Sheets

CS Universal Spine Extension™ Set (EU,US,Asia,AUS,UK,Japan) Data Sheet (Rev.09) Data Sheet PDF · 14 MB Download

Product Sheets

Instructions for Use

Other Resources

Warranty Document Product warranty information · PDF · 155 KB Download

More Information

Further Product Information

The CSM2958 CS Universal Spine Extension Set is a dual rail extension frame designed to attach to an operating table and support patient positioning during surgery, including spinal procedures. The set combines the CSM2955 table adaptor, CSM2956 powered leg and CSM2957 frame. It is compatible with sectional pressure management pads and other support attachments, including hip and thigh supports. The reusable set is latex and phthalate free and can be cleaned with non-alcohol hospital wipes.

Application area
For use in operating rooms (OR) and anaesthesia settings by trained medical personnel.

Packaging specifications
